RAL color new Prepainted Galvanized Steel Coil PPGI PPGL Hot Rolled Steel Sheet coil

The full name of PPGI is color coated galvanized steel, also known as color coated steel. PP is the abbreviation for painted, G is the abbreviation for galvanized. A layer of zinc metal is evenly distributed on the surface of the PPGI steel plate, which protects the base material and prevents the base material from rusting and corrosion.
Availability:
Quantity:

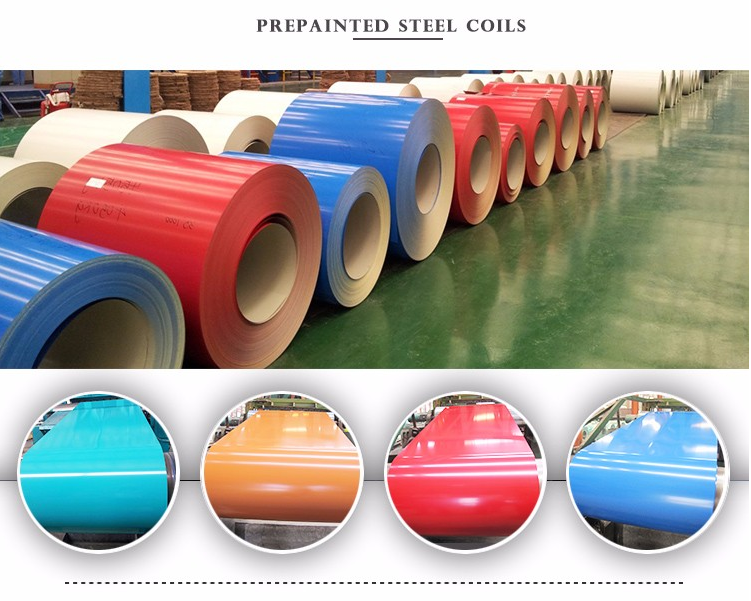

R-C (1)

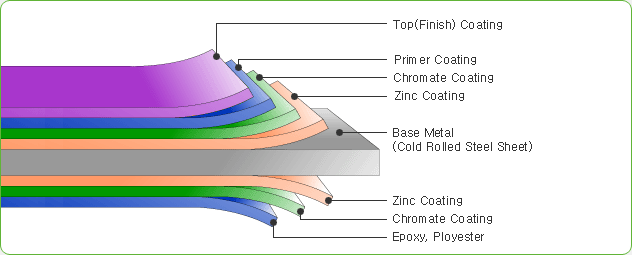

PPGI & PPGL Layers

ppgi-coil-profile

  • Top (finished) coating

  • Primer coating

  • Chromate coating

  • Galvanized layer

  • Base metal (cold rolled steel sheet)

  • Galvanized layer

  • Chromate coating

  • Epoxy, polyester

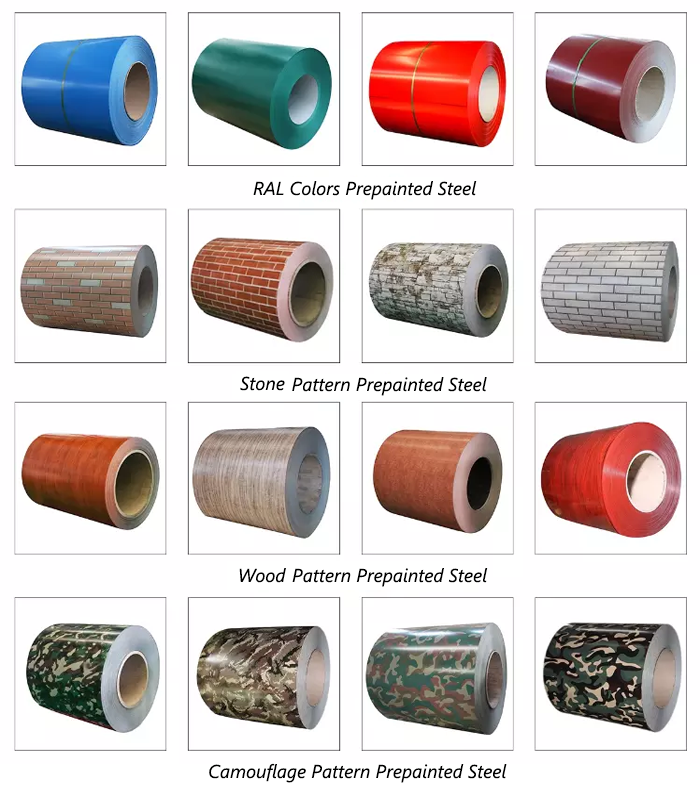

Available color

color

Grade
DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ,
SECC,SECE, BLCE+Z, BLDE+Z, BUSDE+Zor Customer’s Requirement
Thickness
0.12-1.2mm
Width
600mm, 650mm, 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or According To Customer's Requirement
Length
In Coil Or According To Customer's Demends
Coil weight
3-8tons
Coil ID
508/610mm Prepainted steel coil
Coil OD
800-1500mm
Color
RAL Code Or According To Customer's Sample
Painting Type
PE, HDP, SMP, PVDF
Zinc coating
Z30g-Z275/m2

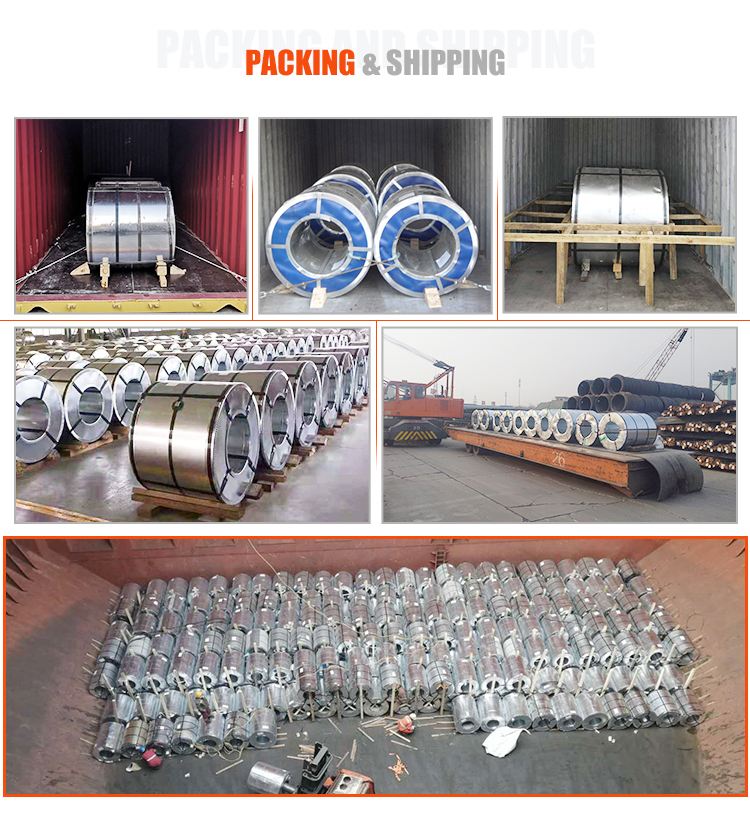

Package

packing

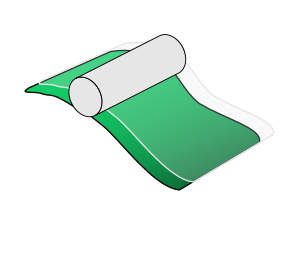

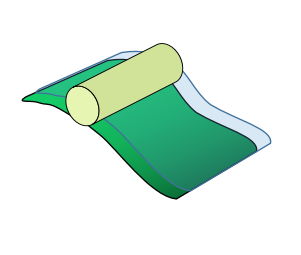

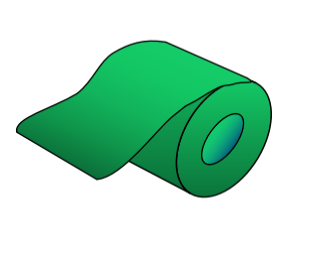

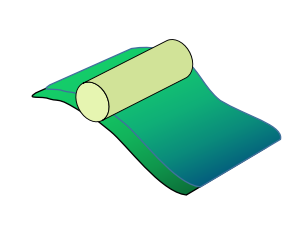

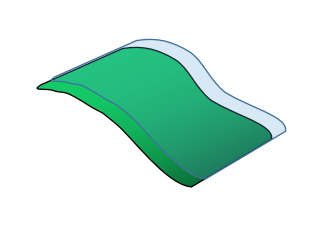

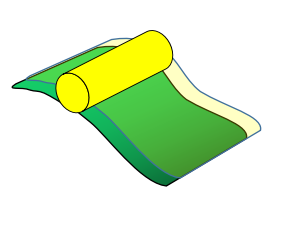

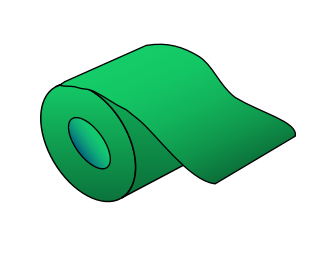

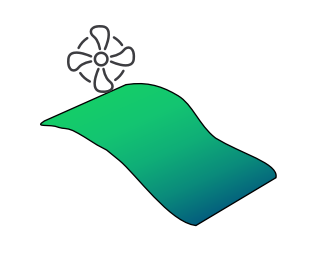

Technological Process
APPLICATION
1. Construction industry The most extensive application of color-coated panels is the construction industry. With the rapid development of steel structure construction technology, and the country vigorously promotes steel structure construction, the application scope of color coated panels in this field is rapidly expanding.

From industrial buildings to civil buildings, from roofs and walls to balconies, doors and windows, kiosks, telephone booths, etc., its usage is growing rapidly. With the development of color-coated board manufacturing technology, many high-end ceilings and interior wall panels with embossing and printing have begun to be used in the decoration industry. At present, there are many kinds of architectural color-coated panels, all kinds of coatings are applied, and the thickness of coatings can vary widely.

2. Household appliance manufacturing industry. With the increase in the variety of color-coated plates and the improvement of manufacturing processes, the application of color-coated plates in the household appliance manufacturing industry is growing at a high speed, mainly used in refrigerators, washing machines, microwave ovens, dishwashers, disinfection cabinets, Sanitary equipment, etc. At present, color-coated plates for household appliances are mostly high-gloss single-color coated plates and film-coated plates.

3. The application of color-coated plates in the electromechanical product manufacturing industry includes electronic control device panels, housings, and various instrument housings. In addition, color-coated plates are gradually being used for the shells of office equipment such as computers and copiers.

4. Color-coated plates in other industries are also used in many other industries, such as agricultural machinery, light industrial products, toys, etc.
steel structure workshop
Any RAL color-roofing sheet
washing machine shell
rolling shutter door
