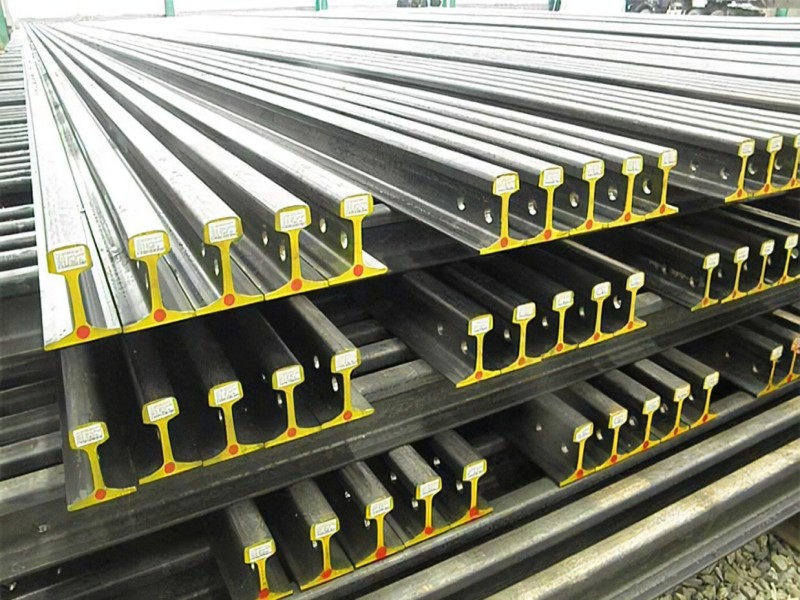

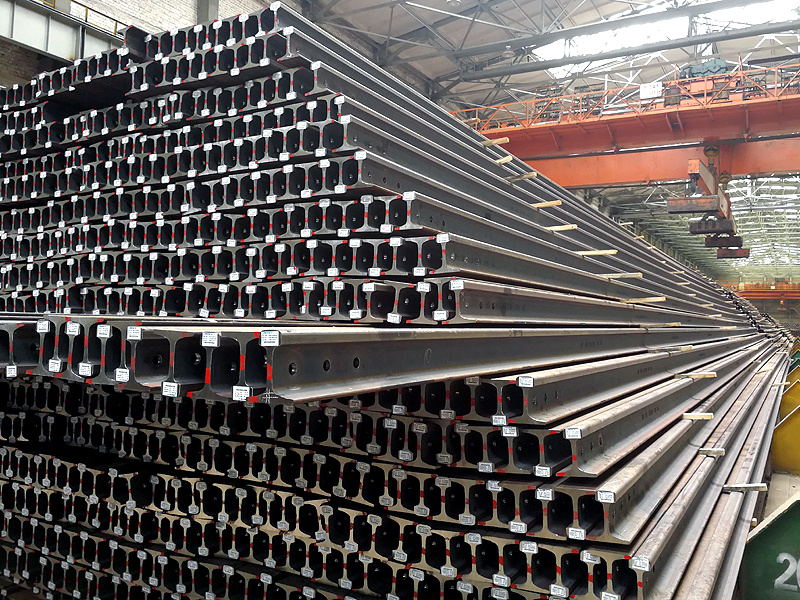

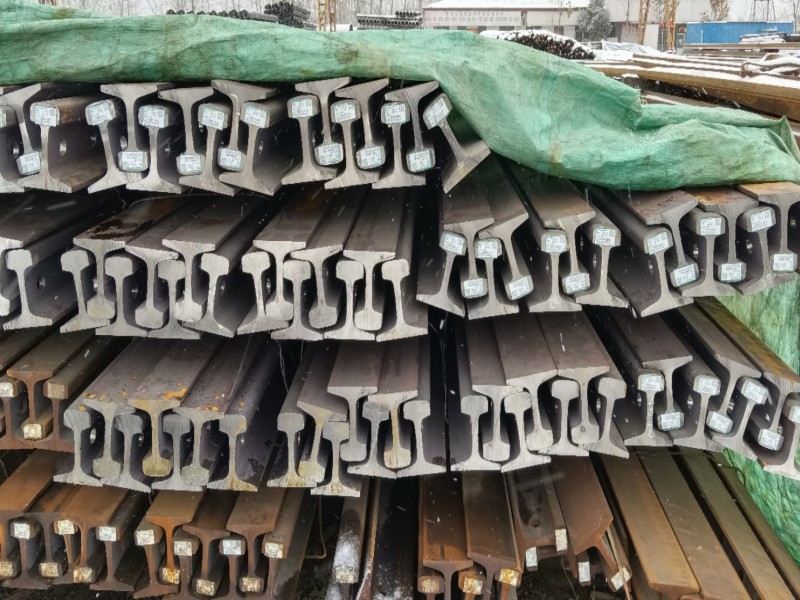

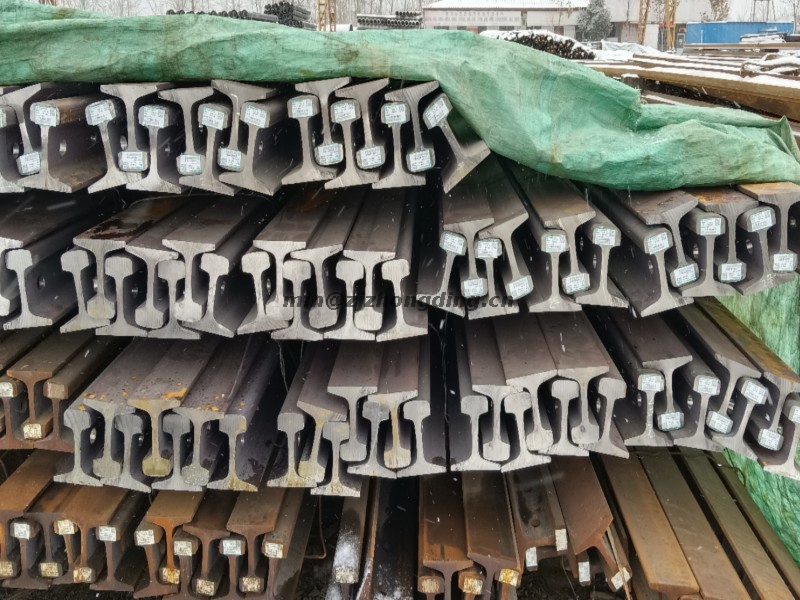

Steel Rails-Hot Standards from ZHONGDING | |||||||
Standard | Sepc. | Material Typical Grade | |||||
UIC860 | UIC54 | 700,900A,900B | |||||
UIC60 | |||||||
EN13674.1 | 50E1 | R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT | |||||
54E1 | |||||||
60E1 | |||||||
60E2 | |||||||
BS-11-1985 | BS80A | 700,900A,900B | |||||
BS90A | |||||||
BS100A | |||||||
AREMA | 115RE | SS,HH,LA,IH | |||||
136RE | |||||||
ASCE60 | U71Mn | ||||||
ASCE85 | U71Mn | ||||||
GB 2585-2007 | 50kg/m | U71Mn,U75V | |||||
60kg/m | |||||||
75kg/m | |||||||
TB/T2344-2012 | 50kg/m | U71Mn,U75V,U77MnCr,U78CrV | |||||
60kg/m | |||||||
75kg/m | |||||||
GB 11264-1989 | 8kg/m | Q235 | |||||
12kg/m | Q235 | ||||||
15kg/m | 55Q, Q235 | ||||||
18kg/m | 55Q, Q235 | ||||||
22kg/m | 55Q, Q235 | ||||||
24kg/m | 55Q, Q235 | ||||||
30kg/m | 55Q, Q235 | ||||||
38kg/m | 50Mn, U71Mn | ||||||
43kg/m | 50Mn, U71Mn | ||||||
GB Crane rails | QU70 | U71Mn | |||||
QU80 | U71Mn | ||||||
QU100 | U71Mn | ||||||
QU120 | U71Mn |

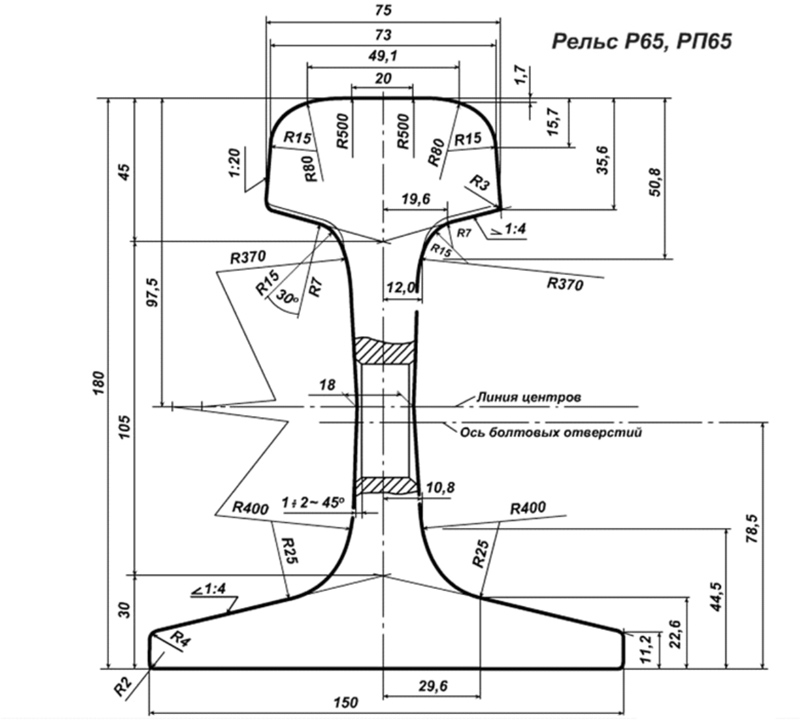

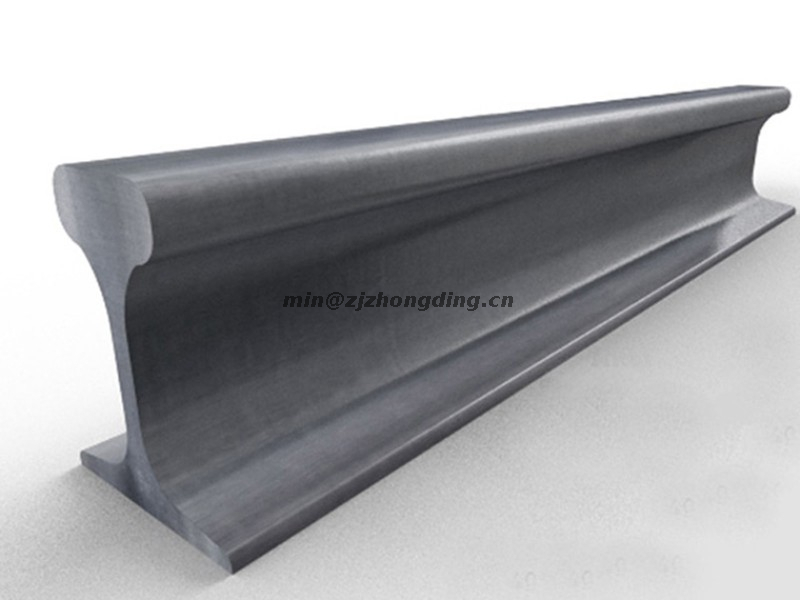

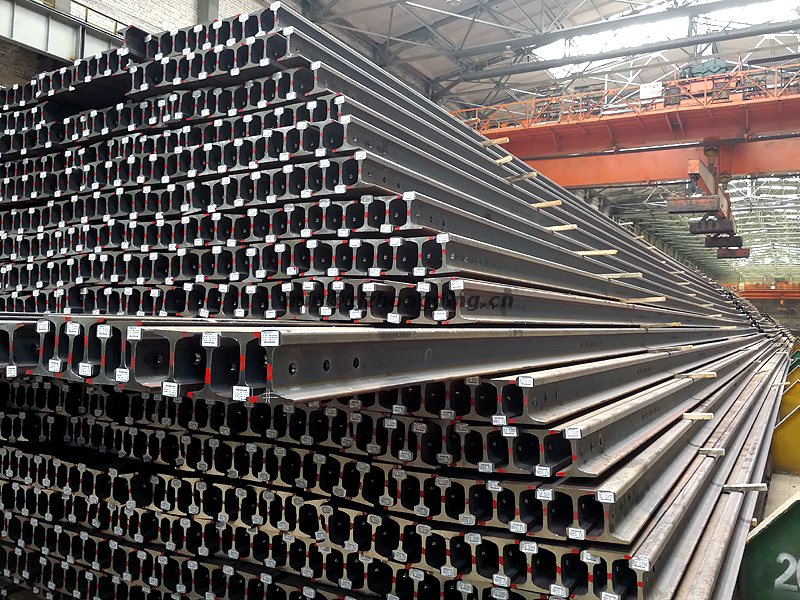

Standard size

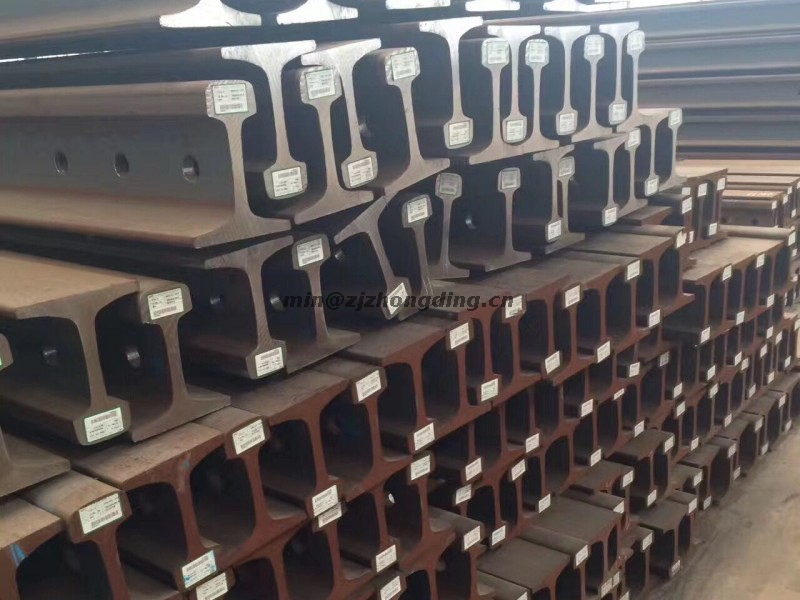

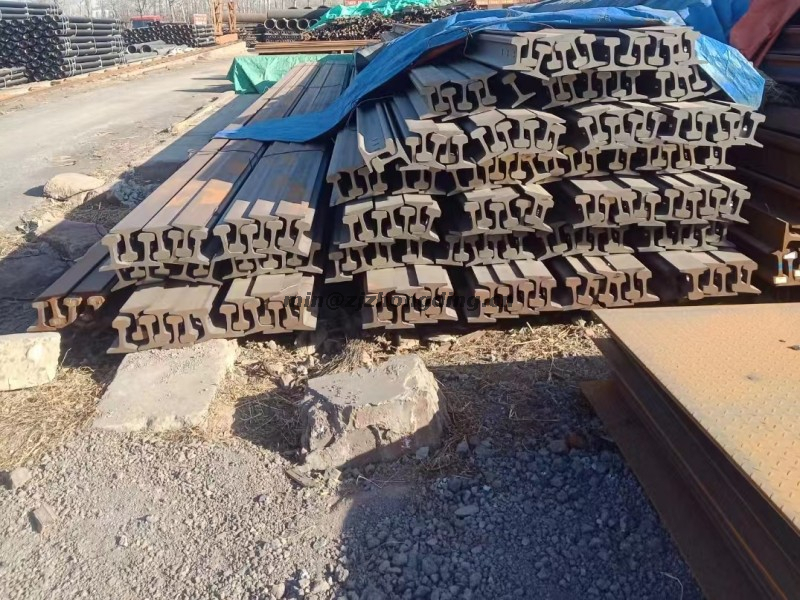

R65 Rail Parameters | ||||||
Rail Type | Weight(Kg/m) | Material | Length(m) | |||
R65 | 64.88 | R260/R350HT | 12.5 or 25 | |||
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness | |||
75 | 150 | 180 | 18 | |||
Chemical Composition of Chinese Standard(%) | ||||||
Grade | C | Si | Mn | Max | V | |
P | S | |||||
R260 | 0.60-0.82 | 0.13-0.60 | 0.65-1.25 | 0.03 | 0.03 | - |
R350H | 0.70-0.82 | 0.13-0.60 | 0.60-1.25 | 0.025 | 0.025 | - |
Mechanical Properties of Chinese Standard | ||||||
Grade | Yield strength (Mpa) | Tensile strength (Mpa) | Elongation (%) | Hardness (%) | ||
R260 | - | ≥880 | ≥10 | 260-300 | ||
R350H | - | ≥1175 | ≥9 | 350-390 |

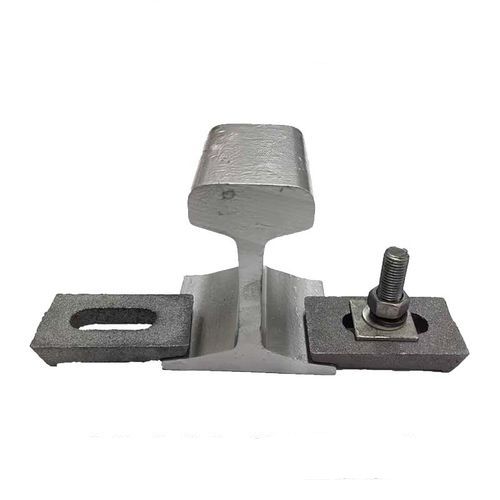

Rail clamp

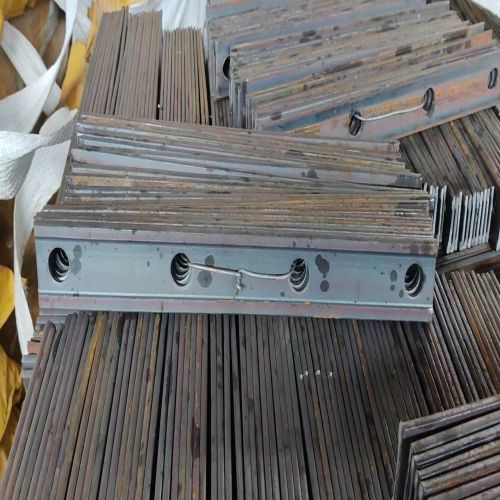

Rail fishplate
