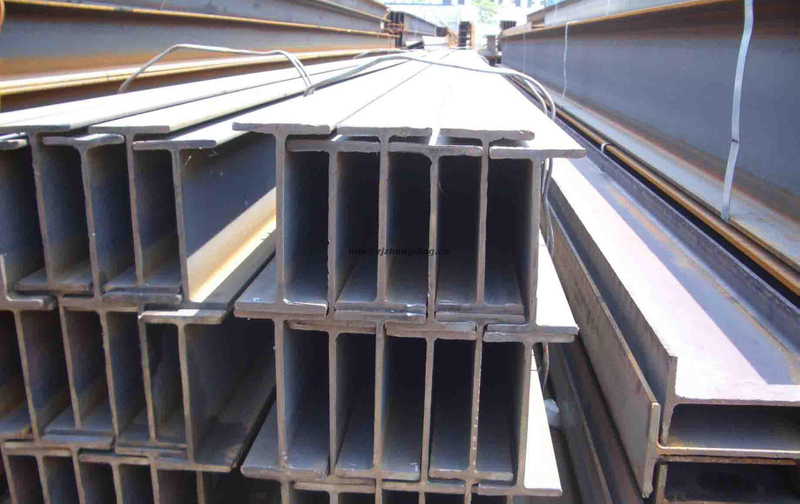

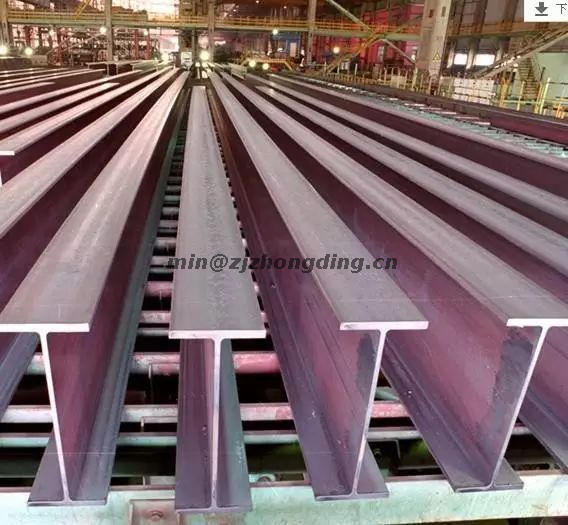

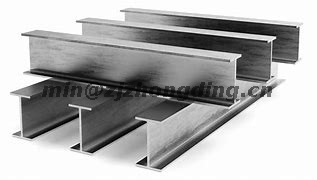

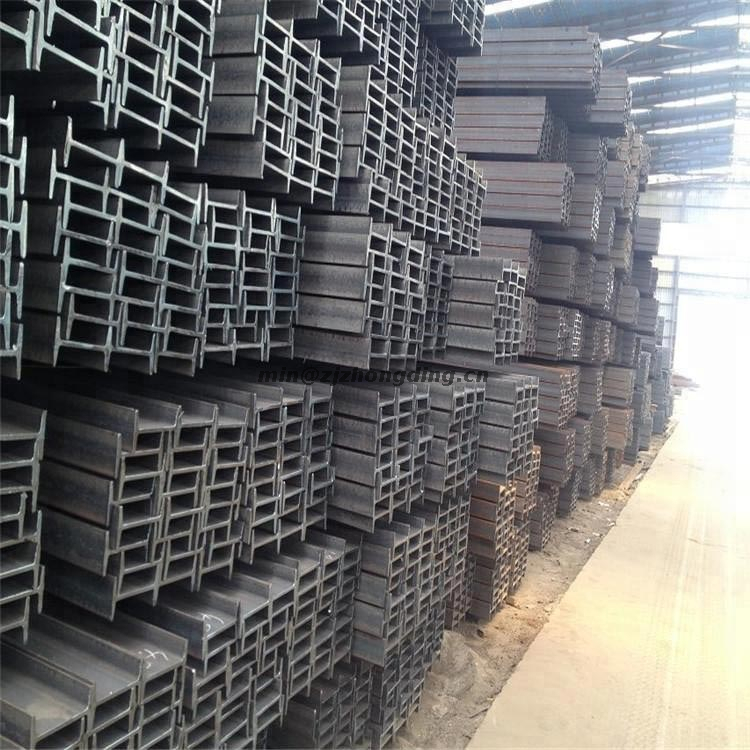

High Grade Q345b 200*150mm Carbon Steel Welded Galvanized Steel H Beam For Construction

Steel Beams are widely used throughout the construction industry when supporting heavy loads is required. Commonly termed an “I” Beam because of its shape, beams provide great load bearing support when used horizontally or standing as columns.
Material:
black
galvanized
Stainless
Availability:
Quantity:
Inquire Add to Basket

H0e82cb

Product Name
Carbon steel base structure H-beam/I-beam
Standard
ASTM、GB、JIS、DIN、BS、AISI
Size
Height: 100-900mm
Length: 6-12m or according to customer requirements
Flange width: 100-400mm
Flange thickness: 5-34mm
Thickness of web: 5-30mm
Material
Q195, Q235, Q345, Q235B, Ss400, S235, A36, S235JR etc.
Technology
Hot rolled
Applications
Beam and column components in industrial and civil structures.
Steel structure load-bearing support for industrial structures
Steel piles and supporting structure of underground engineering
The structure of petrochemical and other industrial equipment
Long-span steel bridge components
Port conveyor belt, high-speed baffle bracket
Frame structure of ship and machinery manufacturing
Girder brackets for trains, cars and tractors
Packaging
Standard export package,suit for all kinds of transport,or as required.
Price Terms
Ex-Work,FOB,CFR,CIF,etc
Payment term
TT,L/C,Western Union,D/P,etc
MOQ
500KG



H beams

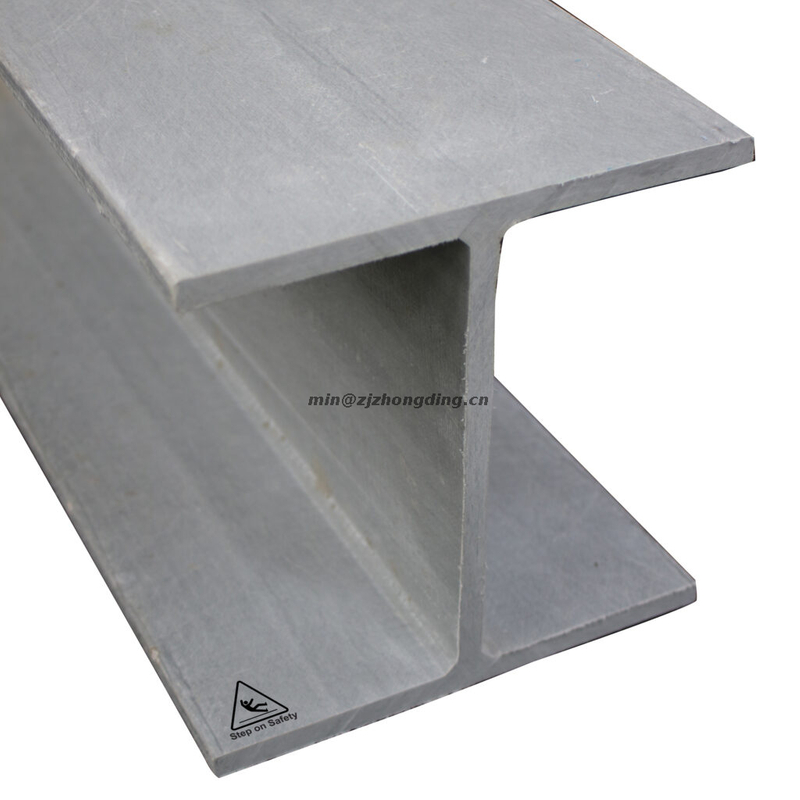

H Steel beams HEA/HEB are a very commonly used type of steel profile. Beams, otherwise called “H” sections, continental beams, or HEA/HEB, are available in multiple material grades, the most common are EN 10025 S275 Q235B and S355. H sections look similar to I sections, but the flange is wider.

Production detail

Hdbb416675e1c4d558d3e8856c2f41640L

SIZE
specification
WEIGHT(kg/m)
10#
100*63*4.5
11.261
12#
120*74*5.0
13.987
14#
140*80*5.5
16.89
16#
160*88*6.0
20.513
18#
180*94*6.5
24.143
20#A
200*100*7.0
27.929
20#B
200*102*9.0
31.069
22#A
220*110*7.5
33.07
22#B
220*112*9.5
36.542
25#A
250*116*8.0
38.105
25#B
250*118*10.0
42.03
28#A
280*122*8.5
43.492
28#B
280*124*10.5
47.888
30#A
300*126*9.0
48.084
30#B
300*128*11.0
52.794
30#C
300*130*13.0
57.504
32#A
320*130*9.5
52.717
32#B
320*132*11.5
57.741
32#C
320*134*13.5
62.765
36#A
360*136*10.0
60.037
36#B
360*138*12.0
65.689
36#C
360*140*14.0
71.341
40#A
400*142*10.5
67.598
40#B
400*144*12.5
73.878
40#C
400*146*14.5
80.158
45#A
450*150*11.5
80.42
45#B
450*152*13.5
87.485
45#C
450*154*15.5
94.55
56#A
560*166*12.5
106.316
56#B
560*168*14.5
115.108
56#C
560*170*16.5
123.9
63#A
630*176*13.0
121.407
63#B
630*178*15.0
131.298

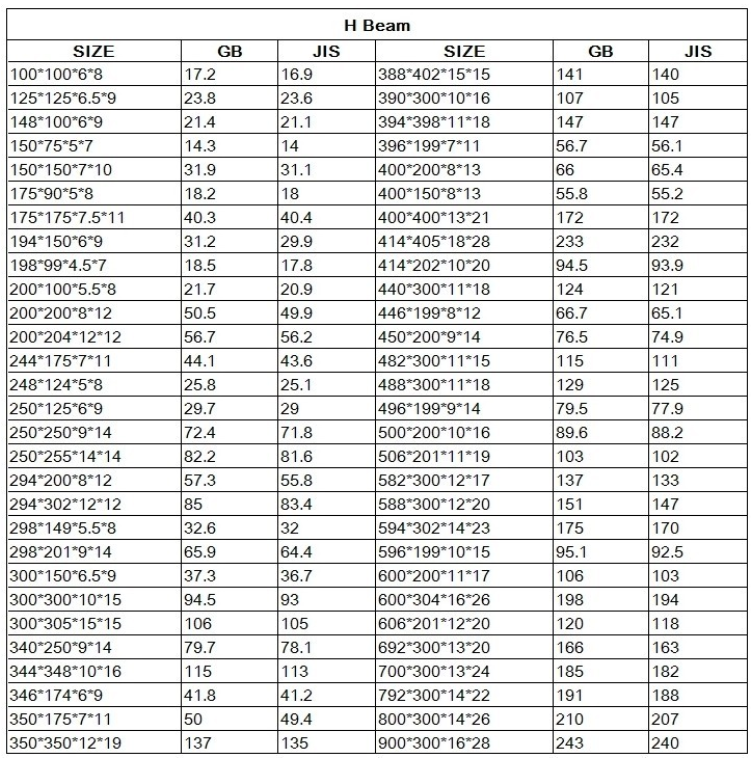

chicun
